Metal Concealed Hinge Jig, Cabinet Hinge Jig, Door Installation Kit | 35mm Cabinet Door Jig with Built-in Screw Hole Guide and Wider Offset from 2 to 8mm, Woodworking Cabinet Hinges Mounting Tool
4.5 (92 items)
Limited Time SaleUS$23.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 246960130 | Release Date | 2026/08/16 | List Price | US$15.99 | Model Number | 246960130 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Precise and Fast Drilling】This dual-bearing concealed hinge jig is crafted from aluminum alloy, sturdy and durable. Equipped with an integrated 35mm carbide-tipped bit, it delivers stable drilling with minimal pressure. It creates neat, accurate hinge mounting holes effortlessly. Even beginners can achieve efficient, smooth, workshop-level precision drilling every time.

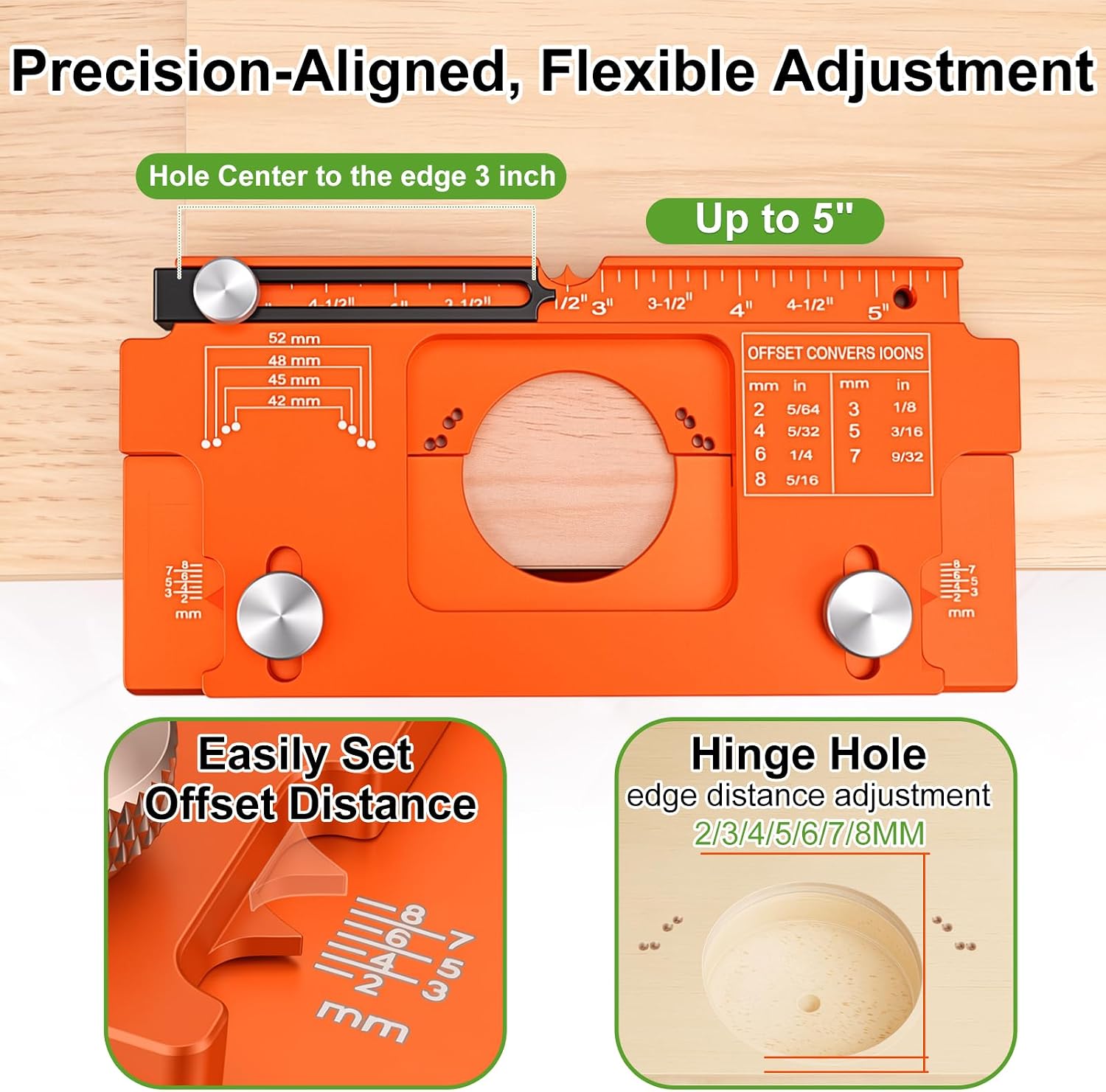

- 【Easy to Use & Adjust】The cabinet hinge hole jig features 2–8 mm adjustable offset and up to 5" of flexible edge adjustment. 35mm cabinet door hinge hole jig comes with a adjust depth stop, suitable for wood materials with a thickness of 12–25 mm, and compatible with most concealed cabinet hinges on the market. An essential tool for hinge installation, this drilling jig helps you with new hinge mounting and hinge replacement efficiently.
- 【Efficient Repeated Drilling】This cabinet hinge jig is fitted with an adjustable stop system. One-time positioning supports batch drilling for precise and repeatable hinge holes, greatly boosting work efficiency. After setting the stop, the door hinge jig stays fixed at the same edge of the wood, helping you drill holes with uniform specifications consistently.
- 【Fits Most Concealed Hinges】This cabinet door hinge jig comes with 4 sets of guide grooves for common screw holes, sized 42×11 mm, 48×6 mm, 52×5.5 mm and 45×9.5 mm. It fits most standard hinge hole spacings on the market and is supplied with two 2 mm drill bits. Featuring an integrated guide groove design, this hinge jig requires no pre-assembly or adjustment. Simply align it and start drilling directly.
- 【Quick Clamping & Universal Design】This integrated hinge screw hole guide is designed for drilling holes and installing concealed hinges on cabinet doors. Equipped with a rotating clamping mechanism, it firmly secures various cabinet door panels efficiently. It clamps workpieces up to 50 mm thick to meet diverse working needs and fits standard installation for common 35 mm jig.
- 【User-Friendly Jig】This concealed cabinet hinge jig kit boasts a simple, user-friendly design that lets beginners operate it effortlessly—no specialized skills or complicated tools required. Perfect for both DIY hobbyists and professional woodworkers, it drastically cuts down installation time for hidden hinges.
| ASIN | B0H2GVLRQP |
|---|---|
| Brand Name | Poiyham |
| Manufacturer | Poiyham |
| Model Number | N025544134 |
| Material Type | Aluminum |
| Included Components | 1*Concealed Hinge Jig Base, 1*Drill Guide, 2*5/64" (2mm) Drill Bit |
